Sesame Oil Hydraulic Press Machine

Hydraulic Oil Press Machine

Production Details

1. This hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate.

2. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system.

3. It has high pressure, high yield oil and easy to operate. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 minutes. The oil is pure and fragrant.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

    The main parameters:

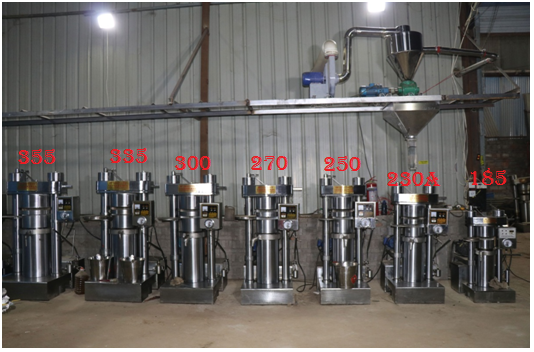

   Model	6YY-185	6YY-230A	6YY-250	6YY-270	6YY-300	6YY-335	6YY-355
   Capacity (kg/batch)	4	8.5	11	13.5	16	20	23
   Working Pressure	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa	60Mpa
   Power (single/  3 phases)	2.2KW/  1.1KW	2.2KW/  1.1KW	2.2KW/ 1.1KW	4KW/ 2.2KW	4.8KW/ 2.2KW	4.8KW/ 2.2KW	5.0KW/ 3.0KW
   Voltage	220V/ 415V	220V/ 415V	220V/ 415V	220V/ 415V	220V/ 415V	220V/ 415V	220V/ 415V
   Weight (kg)	590	924	1070	1230	1600	1750	2350
   Oil cake diameter (mm)	185	230	250	270	300	335	355
   Dimension (mm)	600*880*1150	670*950*1460	710*950*1560	750*1010*1640	1000*1100*1660	1100*1240*1730	1160*1200*1810

    Application rage:

   The hydraulic oil press machine is suitable for cold pressing or hot pressing walnut, sesame, peanut, olive,  castor, corn , coconut, avocado, soybean and  other oil craps.






   Advantage:




   1. This machine takes up less area. It is economic and environmental protection , stable and durable performance. In addition, It is high pressure, high yield oil, oily pure, and no need to filter.

   2. It uses automatic control system, temperature control system and hydraulic pressure control system. It is easy to operate so that it can be operated by one person, saving time and effort.

   3. This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

   4. The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.
