Sesame SCREW PRESS MACHINE

Product Description

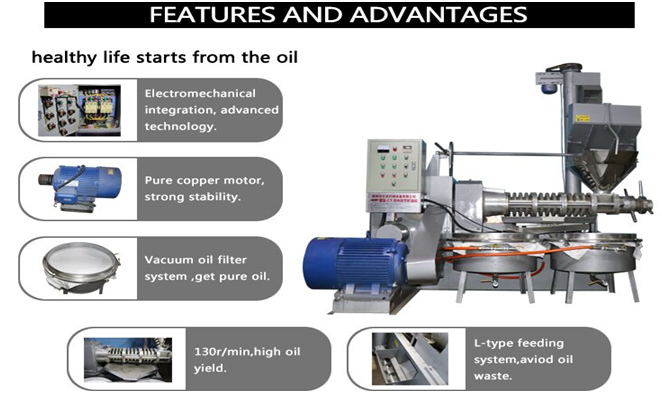

Features and Advantages :

• Electromechanical integration, advanced technology
• Pure copper motor, strong stability.
• Vacuum oil filter system, get pure oil.
• 130r/min, high oil yield
• L-type feeding system, avoid oil waste.

Brief Instruction :

• Our screw model oil press machine can do both hot and cold press, protect the quality of the oil.
• This oil press machine can work with many different oil material and it can be set different temperature for different material, high working efficiency and high oil yield.
• Vacuum oil filter service the oilpress machine well, can get the oil at the food grade level directly.
• We equipped the L type oil cake feeding system, just need one worker to operate it,save labour and improved the working efficiency.
• The thickness of the oil cake can be adjusted according to the request.

Working Principle :

• Screw oil press machine is specially for cold and hot press. The material was push by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket. After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.

Application range :

• This machine can press a variety of raw kinds, including peanut, rapeseed, sunflower, soybean, flax, walnut and other oil craps.

Advantages:

• It is economic and environmental protection, stable and durable performance. In addition, It is high pressure, high yield oil, oil pure and fragrant.
• Gear transmission with low noise and smooth.
• Use excellent heat treatment equipment, the press parts wear-resistant, reducing the users cost of use.
• The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
• The infrared heating preheating temperature can be controlled to set the heating system, and the press can be pressed at the start.
• The oil filter is dense so that the oil can be filtered clean.
• This machine can work continuously for 24 hours. The life of this machine is ten years or longer.
• The diameter of the spiral squeezer is longer than other similar products.
• The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

Technical Specification :

Model

6YL-120

Capacity (kg/h)

120-160

Power (Kw)

15

Vacuum Power (Kw)

1.1

Voltage

415V

Weight(kg)

1500

Squeezer speed(rpm)

100-130

Size (m)

2*1.6*2.7
